To view our current inventory of antique navigation instruments, click here!

Troughton Giant Double Frame Brass Sextant

This Superb Instrument
Has Been SOLD. Thank you

THE ORIGINAL TROUGHTON - LONDON
Giant Size Double Frame, Pillar, Quintant Sextant - One of the Largest!

Giant Troughton double frame pilar sextant image

NO CASE

TROUGHTON & SIMMS were the best of the English instrument makers. This instrument dates from before their partnership. It belongs in a collection of fine nautical antiques or as an important gift


Copyright 2015 by Land And Sea Collection™ All Rights Reserved

PRESENTED is the largest double frame sextant that we've ever seen in reference works, museums or any place. And to make it even more special, it was made by Edward Troughton when he was in business as a sole proprietor or perhaps when he and his brother John worked together. The frame is engraved Troughton - London, and carries serial number 1110. It is much larger than normal size for an instrument of this design which suggests it was one of the first double framed sextants made by Edward who invented this design. Based on the work of Alan N. Stimson of the National Maritime Museum at Greenwich, England in 1976, we date it to Ca 1816.  Furthermore, it is the only double frame instrument of this large size that we know to exist regardless of the maker. It measures approximately one inch more in all dimensions except for the size of the mirrors which makes it 22 percent larger in area.

The arc subtends an angle of 145 degrees which classifies it as a quintant. Since brass is much stronger and more rigid than wood, it became the material of choice for sighting instruments.  Double frame sextants were expensive to make and never gained the popularity of the more common single, cast-framed instruments. Consequently they infrequently come to market. For example, this is the fourth double frame instrument that we have offered in twelve years. For the last most recent see http://landandseacollection.com/id1004.html  This is a smaller version that we sold in 2014 which was made by the Troughton & Simms partnership.

This is an instrument that is so rare and special that it can be considered a remarkable vestige of the last quarter of the 18th Century.
Back of Troughton Double Frame Pilar Sextant image

The sextant has a polished brass straight-bar pattern pillar frame, mounted with twenty one pillars over a second frame with various fittings and mounts, and a wooden handle. The tangent screw and clamping screw are positioned on the back of the index arm. The device has four index shades, and three horizon shades. The telescope is attached to a perpendicular rising-piece which is adjusted in and out by a milled knob. There is also a magnifier traveling over the vernier. The single telescope presents an inverted image. The polished brass limb is inlaid with a sterling scale from -5° to 145° divided each 5 degrees. The sterling vernier measures from right to left from 0 to 10 in arc seconds. Edward Troughton patented the pillar and plate frame sighting instrument in 1788.

This is a one time opportunity to acquire an extremely rare and very large example of a double frame, pillar,  instrument from Troughton, the inventor of the design and without a doubt, one of England's most distinguished instrument makers!

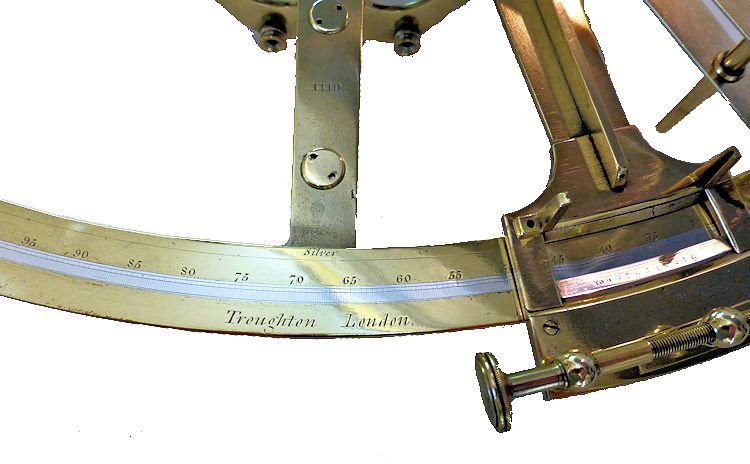

Close-up showing the maker's name and the serial number on the index arm image
Maker's mark, Troughton - London with serial number, 1110, on vertical brace above

INSTRUMENT CONDITION: The telescope displays the image up-side down which was not unusual for astronomical use. Both mirrors, considering their age, are in very good condition with the index mirror having some corrosion limited to its outside vertical edge. The swing arm magnifier is complete and in good working order. Both sets of shades, i.e., filters are without imperfections. When looking at the instrument from the rear, the left leg has been repaired using a high tech adhesive. The endless tangent screw is hard to turn due to having a lacquer coating on the threads.


Close-up showing the horizon mirror image
The split image elliptical horizon mirror in remarkably good condition



Close-up of index mirror image
The index mirror is also in good condition with only some corrosion on outside edge



 HISTORIC BACKGROUND

Edward Troughton, FRS (October 1753 – 12 June 1835) was a British instrument maker who was notable for making telescopes and other astronomical instruments. Troughton was born at Corney, Cumberland. In 1779, after serving an apprenticeship with his elder brother John, he became his partner and soon established himself as the top maker of navigational, surveying and astronomical instruments in Brittan.

In 1795 he delivered the Troughton Equatorial Telescope to the Armagh Observatory, a 2 inch aperture refractor telescope mounted equatorially, and its first major instrument since its founding in 1790 (It survived into the 21st century also). [2] He created the Groombridge Transit Circle in 1806, which Stephen Groombridge used to compile his star cataloger.[3] He did not merely build instruments, but designed and invented new ones such as his double frame instrument of 1788.

Troughton was awarded the Copley Medal of the Royal Society in 1809. He was elected a Fellow of the Royal Society in March 1810. In 1826, after John's death and in failing health himself, he took on William Simms as a partner and the firm became known as Troughton & Simms. Troughton was color blind. On his death in 1835, he was buried in Kensal Green Cemetery.

TROUGHTON & SIMMS, THE SUCCESSOR: Troughton & Simms was a British instrument-making firm, formed when Edward Troughton in his old age took on William Simms as a partner in 1826. It became a limited company in 1915, and in 1922, it merged with T. Cooke & Sons to form Cooke, Troughton & Simms. The firm produced hundreds of astronomical instruments such as mural circles, transit circles, sextants, and other astronomical instruments for observatories around the world. Previously, Troughton had been a sole proprietor, and before that he was in partnership with his brother John. John died and Edward took on Simms in 1826. Edward Troughton died in 1835.   In 1924 the company became a wholly owned subsidiary of Vickers; it continued in the instrument business until 1988.

Refs. This maker is is listed in Sextants at Greenwich", "Sextants at Greenwich" by W.E.J. Mozer Bruyns, which catalogs the collection of the British National Maritime Museum at Greenwich, England. And in:

"The Influence of the Royal Observatory at Greenwich upon the Design of 17th and 18th Century Angle-measuring Instruments at Sea", 20 Vistas in Astronomy, 123-130 (1976), Alan N. Stimson of the National Maritime Museum at Greenwich, England.



Close-up of vernier image
The tangent screw with the vernier above reading from right to left in arc seconds



CERTIFICATE: There is no certificate which is customary with very old instruments.

DIMENSIONS:

Arc -5° to + 145°:
Length of index arm     11 3/4"
Radius of arc                10 1/2"
Width of frame at arc    13"
Index mirror                  48 x 32 mm
Horizon mirror              26 x 27 mm ellipse
4 index shades

3 horizon shades
Weight                           3 Lbs 10 oz


SHIPPING, PACKING AND INSURANCE to 48 contiguous states $50.00

OUR UNCONDITIONAL NO NONSENSE GUARANTEE: If not completely satisfied with your purchase it may be returned, if without damage, within five days of receipt in its original condition and packaging. Returns must be insured for their full value. All that is required is a prior email authorization by us for the return. The cost of shipping, packaging and handling within the continental United States will be refunded if we are at fault.
